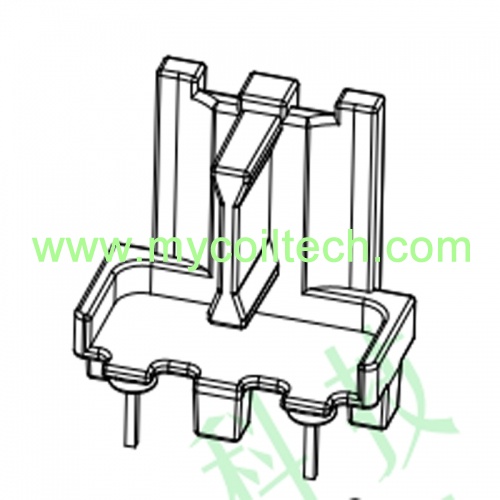

2+2 pins SQ19 inductor base, horizontal ET coil former for common mode choke inductor. Size=24.0mmX14.3mmX12.5mm. Parallel Distance=10.0mm. Pin pitch=19.0mm. PET material base. We are professional bobbin factory, we have made different series bobbin moldings, samples are available.
brand:
MCTitem no.:
MCT-SQ1903 (H2+2P)shipping port:
Shanghaipayment:
T/T in advanceHot selling common mode choke base, SQ19 bobbin horizontal 2+2 pins, samples can be sent for testing.
Product Specification
For more details, welcome to contact us:
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily
Vertical High Current Inductor SQ23 Bobbin
Common mode choke inductor. 2+2 pins vertical SQ23 coil former. Bobbin Size=28.0mmX14.0mmX25.0mm. Parallel Distance=10.0mm. Pin pitch=18.8mm. Flat wire winding common mode choke coils. We are professional transformer bobbin factory, our bobbins mainly used in high frequency line filters, smoothing choke coil, drive transformer, switching power transformers and chokes.
SQ23 Common Mode Choke Inductor Bobbin
High current SQ23 inductor. 2+2 pins SQ23 horizontal coil former. Bobbin Size=25.5mmX24.0mmX11.75mm. Parallel Distance=22.5mm. Pin pitch=20.0mm. Flat wire winding common mode choke coils. We are professional transformer bobbin factory, our bobbins mainly used in high frequency line filters, smoothing choke coil, drive transformer, switching power transformers and chokes.
Horizontal Bobbin EE16 Transformer Bobbin With 6+6 Pins
6+6 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=12.5mm Size=15.5mmX15mmX14.8mm
3+3 Pins RM5 Power Transformer Bobbin
RM5 through hole bobbin, 3+3 pins RM5 vertical transformer frame. Phenolic material RM5 transformer bobbin. Bobbin Size=16.0mmX10.0mmX6.20mm. Parallel Distance=10.8mm.Parallel Distance=14.4mm. RM5 transformer has strong anti-interference and attenuation of low transmission, welcome for customized electronic transformer.
EF20 Switching Power Transformer Horizontal Bobbin 4+4 Pin
Customized EF20 transformer 4+4 pin. Horizontal EF20 coil bobbin. Bobbin Size=20mmX19.5mmX17.5mm. Parallel Distance=15mm. Pin pitch=5mm. Phenolic material transformer bobbin. DIP transformer bobbin.
6+8 Pins PQ20 Flyback Transformer Frame
PQ20/16 vertical coil former. 6+8 pins transformer PQ20 bobbin. Pin pitch=5mm. Parallel Distance=20.5mm. Bobbin Size=23.0cmX23.0cmX18.2cm. PQ bobbin series: PQ20/16 PQ20/20 PQ26/25 PQ32/30, welcome customized PQ20 transformer, we can make bobbin tooling.
ETD34 Switching Power Supply Transformer Frame
ETD34 ferrite core bobbin. Horizontal ETD34 15+15 pins coil former. Bobbin Size=40.2mmX39.15mmX27.0m. Pin pitch=2.54mm. Parallel Distance=30.0mm. We have single slot and multi section ETD34 bobbin toolings, we can make new ETD34 tooling to meet size requirement, customized ETD34 transformer also welcome.
Vertical 4+4 Pin SMD ER7.5 Power Transformer
4+4 pins ER7.5 SMD bobbin, ER7.5 PCB mounting transformer. Pin pitch=1.75mm. We supply ER7.5 cores, for special size, we can make new tooling.
EF25 Horizontal Wire Bobbin 4+4 Pin For Transformer
4+4 pin EF25 coil former. PC40 ferrite core. Bobbin Size=22.8mmX17.6mmX20.0mm. Pin pitch=4.7mm. Parallel Distance=20.0mm. PA66 material transformer bobbin. L pin winding bobbin.
EI19 Vertical High Frequency Bobbin 3+4 Pin For Transformer
Transformer vertical bobbin EI19. 3+4 pins coil bobbin. Bobbin Size=38mmX18.1mmX14.2mm. Parallel Distance=33.9mm. Pin pitch1=4.1mm. Pin pitch2=4.6mm. Nylon material transformer bobbin. DIP transformer bobbin. UL REC:94V-0. We can make new bobbin tooling to meet different requirements.
Vertical Bobbin EE16 Dip Transformer Bobbin With 4+6 Pins
5+2 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=12.2mm Size=17.6mmX15.5mmX16.3mm
High Frequency EE20 Switch Mode Transformer Bobbin
EE20 6+8 pin horizontal bobbin. EE20 phenolic coil former. Bobbin Pin Pitch1=5mm. Bobbin Pin Pitch2=2.5mm. DIP transformer bobbin. Parallel Distance=20mm. Bobbin Size=24.8mmX20.9mmX15.4mm. UL REC:94V-0.
